- Motor Power: 5-amp commercial-grade motor for deep cleaning performance
- Cleaning Path: 12-inch width for efficient coverage of large areas
- Dust Containment: Dirt cup system for easy debris disposal without the need for bags
- Cord Length: 30-foot power cord for extended reach with fewer interruptions
- Durability: Chrome hood for long-lasting commercial use
- Noise Level: Engineered for quieter operation, making it suitable for business environments

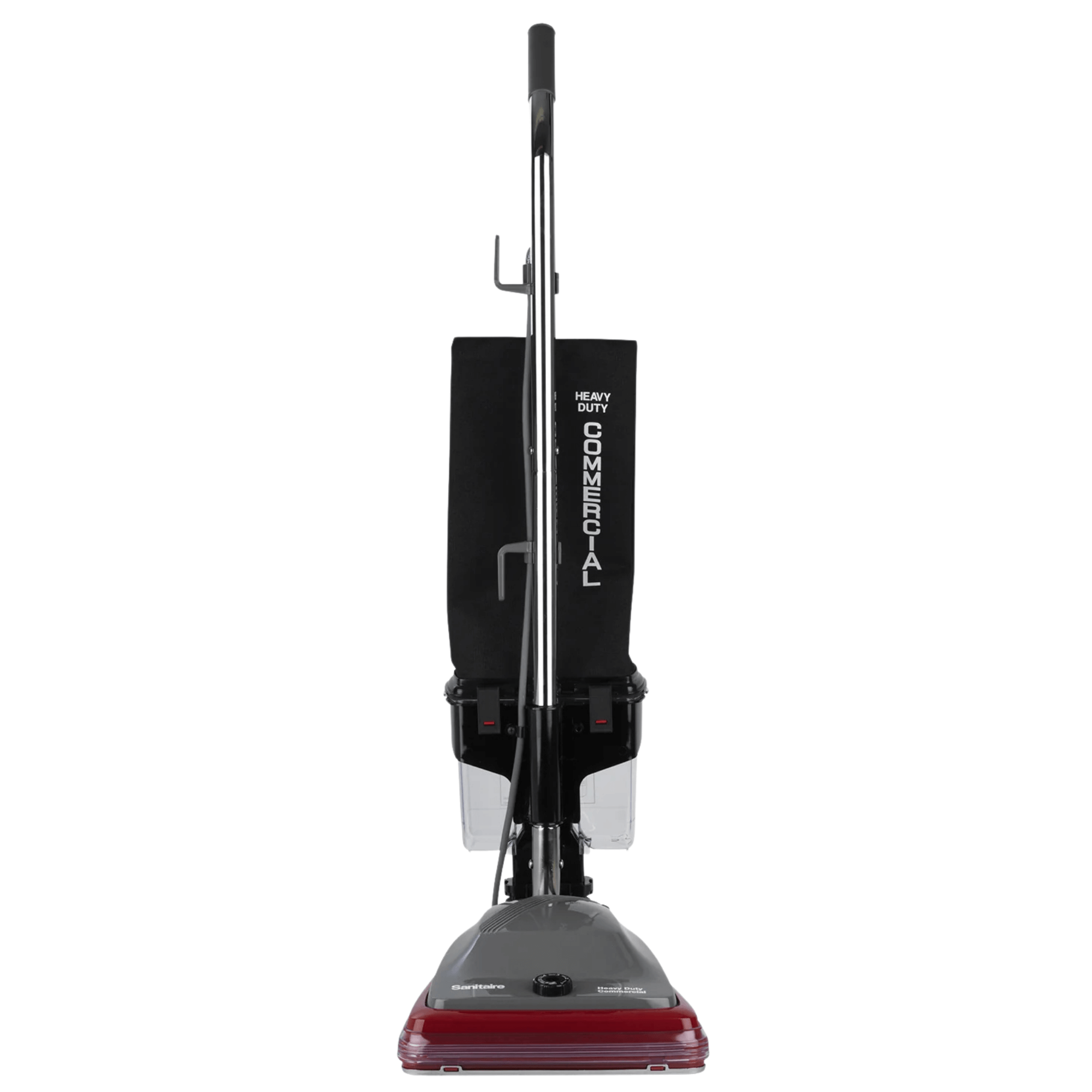

The Sanitaire Tradition SC689B Commercial Upright Vacuum Cleaner is designed for professional cleaning performance in hotels, offices, and retail spaces. Featuring a powerful 5-amp motor, this vacuum effectively removes dirt and debris from carpets and hard floors. Its 12-inch cleaning path enhances efficiency, covering large areas quickly while ensuring deep cleaning results.
The dirt cup system eliminates the need for disposable bags, reducing operating costs and making maintenance easier. A 30-foot power cord allows for continuous cleaning with minimal interruptions, while the chrome hood ensures durability for long-term use in high-traffic environments. Additionally, the SC689B operates at a low noise level, making it an ideal choice for spaces requiring minimal disruption.
SC689A Parts List
Key | Part # | Description |
---|---|---|
1 | 53574A5 | CORD RETAINER SET |
2 | 531981 | HANDLE SCREW ASSY PACKAGE |
3 | 158001 | Tube - Handle (Lower) |
4 | 5237014 | CORD & TERMINAL ASSY 30' 8" |
5 | 381831SV | HANDLE SOCKET ASSEMBLY |
6 | 532135 | NUTS - PACKAGE 10 |
7 | 53145 | BOLT PACKAGE (10) |
8 | 3529322 | GRIP - HANDLE |
9 | 53077 | SPRING - STRAIN RELIEF PKG (5) |
10 | 2532944SV | HANDLE ASSEMBLY (UPPER) |
11 | 55015 | CLIP - WIRE |
12 | 553991 | Pin Cover |
13 | 147651 | FLANGE - BAG (OUTER) |
14 | 38289 | GASKET |
15 | 545611 | SUPPORT & LATCH ASSY - PKGD |
16 | 262662 | CLAMP |
17 | 57711 | RING STEEL |
18 | 576861 | HOOK - SNAP |
19 | 544227 | BAG ASSEMBLY - PACKAGED |
20 | 58223 | GASKET - DIRT CUP |
21 | 01959313N | DIRT CUP |
22 | 72661B1 | HARDWARE PACKAGE-COMM DIR |
23 | 53143 | SCREW PACKAGE (10) |
24 | 380532 | KNOB ASSEMBLY |
25 | 1477815R1 | Hood & Graphics Assy |
26 | 5323811 | SCREW PACKAGE |
27 | 576871 | CLAMP - CABLE |
28 | 5323814 | SCREW PACKAGE |
29 | 159432 | MOTOR CHANGE KIT (5AMP) |
30 | 532282 | SCREWS - PACKAGE 10 |
31 | 55296 | Wire & Terminal Assembly |
32 | 532135 | NUTS - PACKAGE 10 |
33 | 53140 | CLAMP & SCREW ASSY PKG |
34 | 36263 | COVER - WHEEL |
35 | 544085 | BASE ASSEMBLY - 12" - CARTONED |
36 | 24964A1 | CAM (RIGHT) |
37 | 24965A1 | CAM (LEFT) |
38 | 53118 | RIVET - SHOULDER PACKAGE (10) |
39 | 53133 | STEEL WASHERS - PACKAGE 10 |
40 | 546692 | SCREW PACKAGE |
41 | 382181 | BRACKET - BUSHING |
42 | 53122 | STRAIN RELIEF BUSHING - PKGD |
43 | 146601 | BUTTON - SWITCH |
44 | 37989 | CLIP - SWITCH |
45 | 601921 | WIRE SPLICE 5 |
46 | 137385 | SWITCH ASSEMBLY |
47 | 532386 | Screw Pkg (EW3212-6T7Z) |
48 | 30517A | Gasket - Motor Seal |
49 | 24834A5 | PEDAL - FOOT |
50 | 53097 | SPRING - FOOT PEDAL PKG (5) |
51 | 382881 | CLAMP - BELLOWS |
52 | 147631 | BELLOWS |
53 | 159432 | MOTOR CHANGE KIT (5AMP) |
54 | 54811 | FAN WASHER - PACKAGED |
55 | 53148 | WASHER - FAN PACKAGE (10) |
56 | 48815 | Lamp Headlight |
57 | 530885 | BALL BEARING - PACKAGE |
58 | 81092 | FAN BLOWER - MOTOR |
59 | 285041 | GUARD - FURNITURE |
60 | 53121 | PUSH NUT PACKAGE (10) |
61 | 37183 | AXLE - REAR |
62 | 5323811 | SCREW PACKAGE |
63 | 35947A | AXLE - FRONT |
64 | 26059A | CAP - COVER |
65 | 54104A1 | DISTURBULATOR REPLACEMENT |
66 | 60161 | WHEEL & AXLE ASSY |
67 | 26242119N | WHEEL - REAR |
68 | 53201 | AXLE CLAMP - PACKAGED |
69 | 530762 | SPRING & AXLE PACKAGE (6) |
70 | 35859A1 | WHEEL - FRONT |
71 | 30563B | BELT - DRIVE (STYLE RD) |
72 | 38138 | CAP & BEARING ASSEMBLY |
73 | 259221 | BOTTOM PLATE ASSEMBLY |
xx | 601221 | DIRT CUP ASSEMBLY |
