- Motor Power: 7-amp commercial-grade motor for deep and efficient cleaning
- Cleaning Path: 12-inch width for faster and more effective cleaning coverage

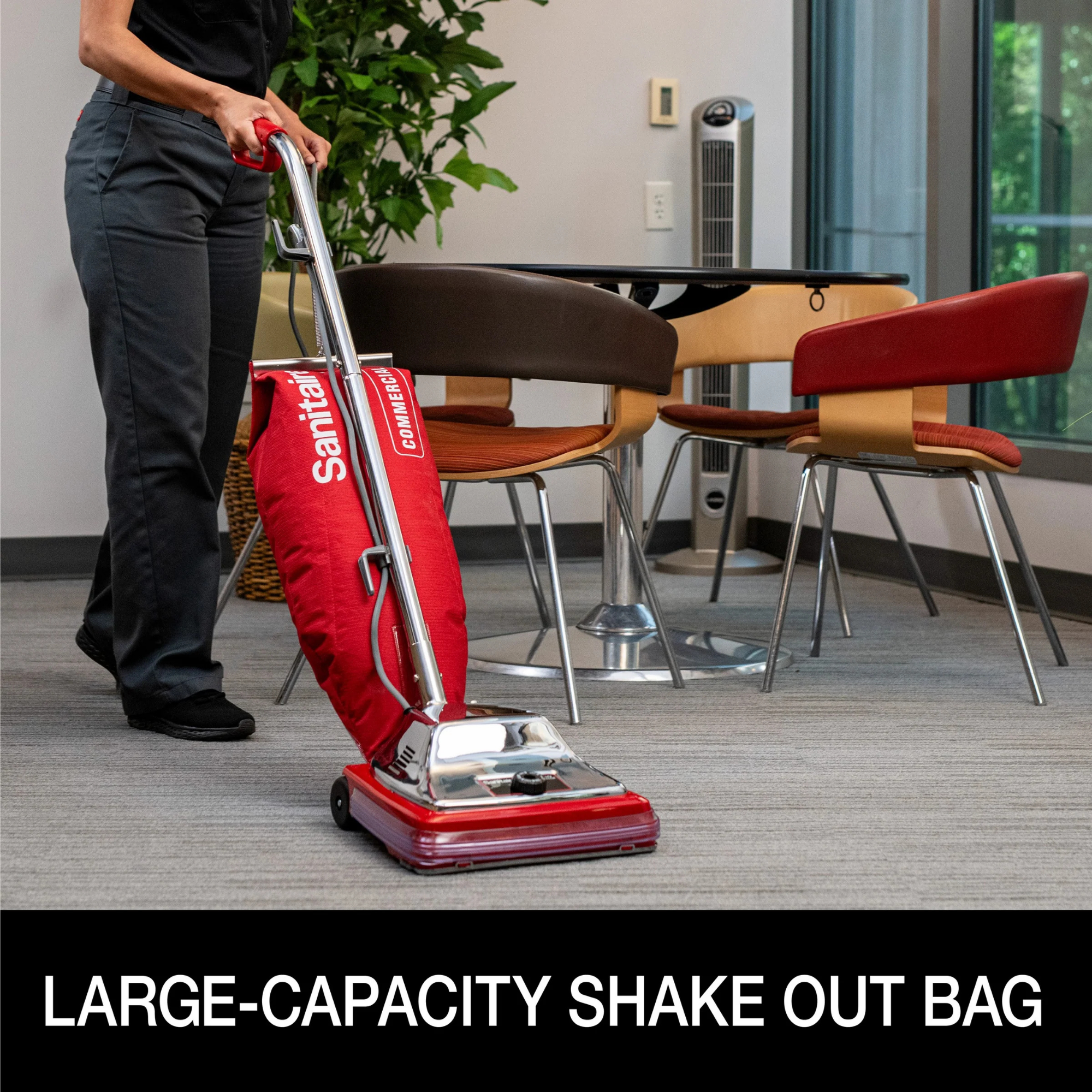

- Dust Containment: Shake-out bag system for cost-effective debris collection
- Cord Length: 50-foot power cord for extended reach with fewer interruptions

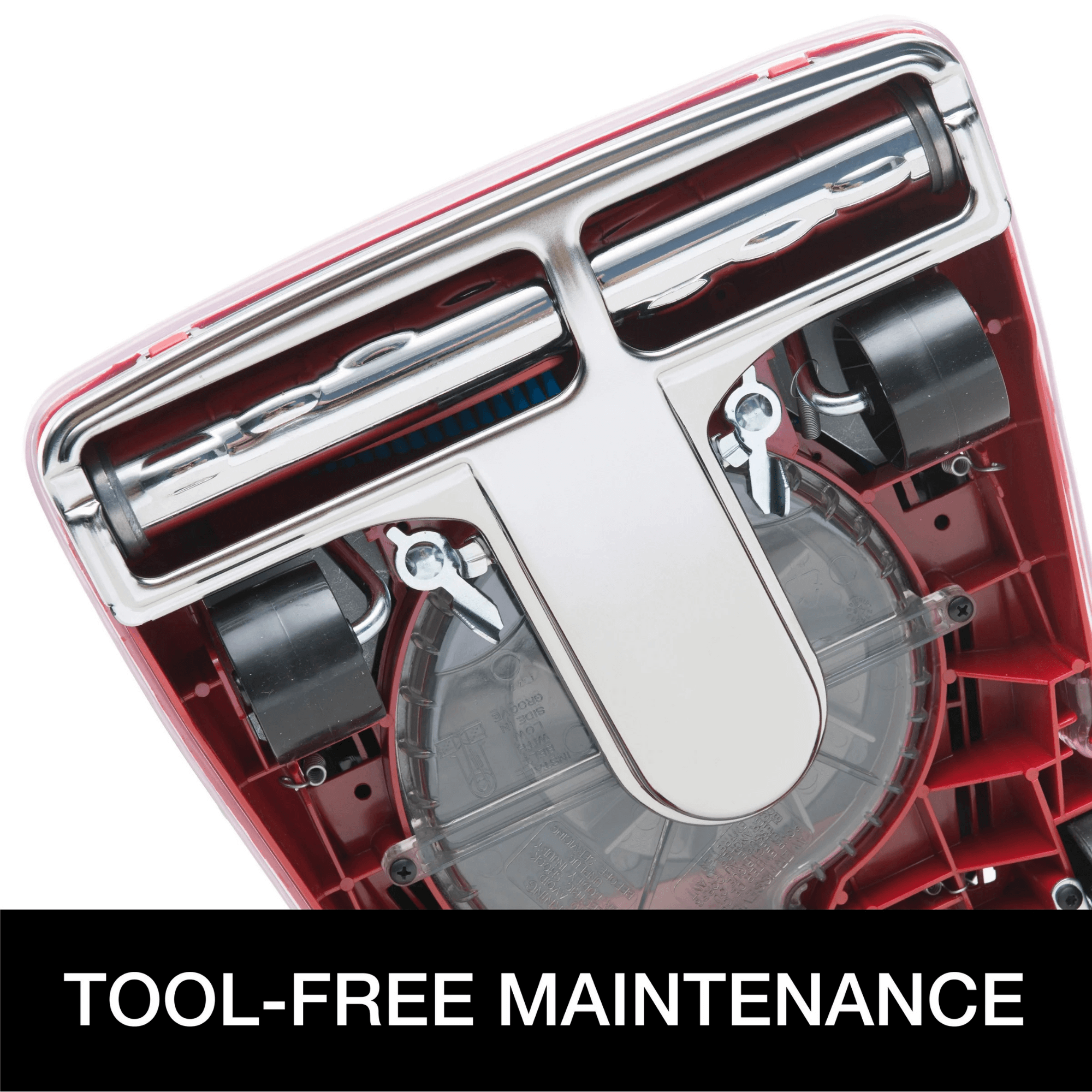

- Durability: Chrome hood and metal brush roll ensure long-lasting performance
- Belt Type: Style RD for reliable brush roll operation
- Noise Level: Designed for quiet operation in business environments

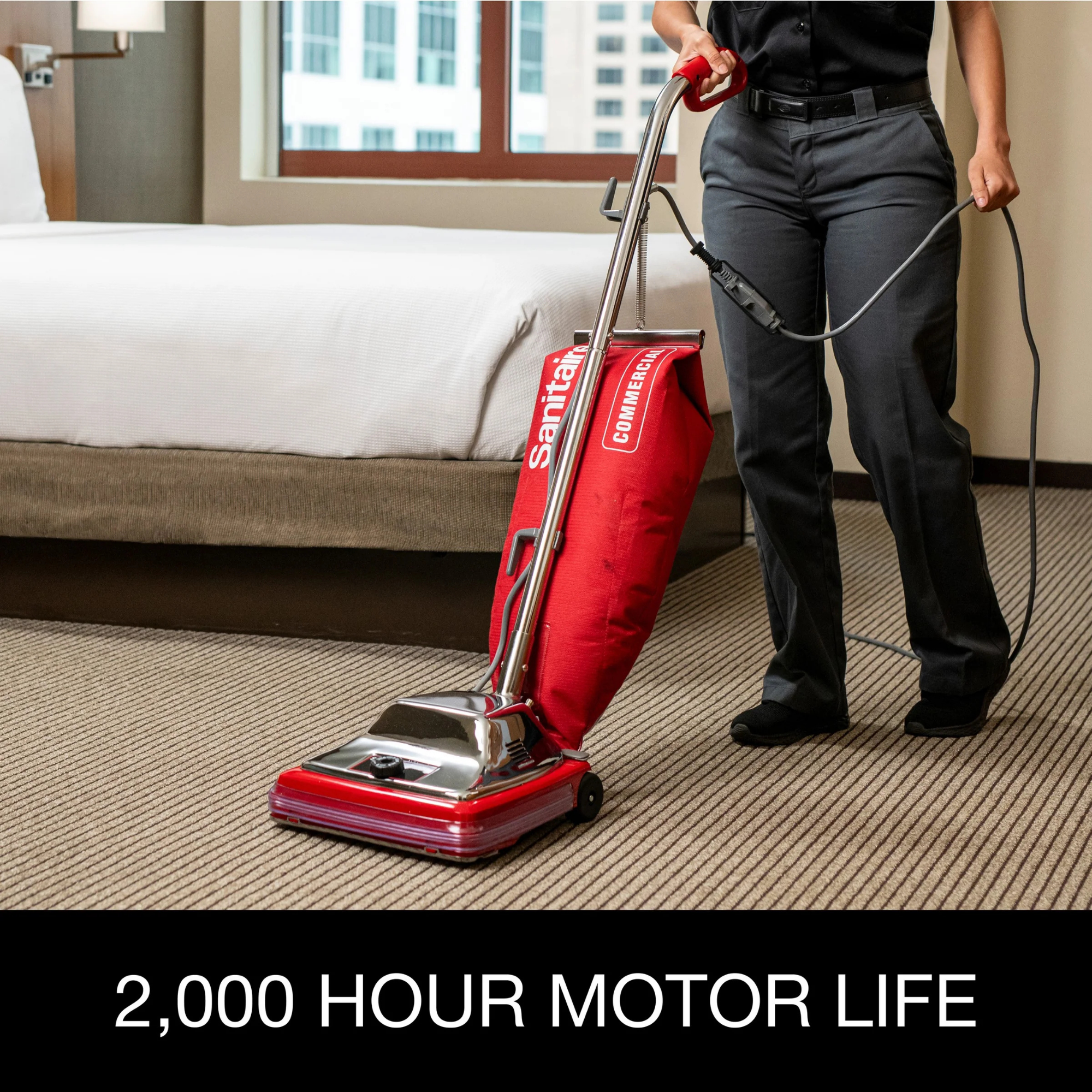

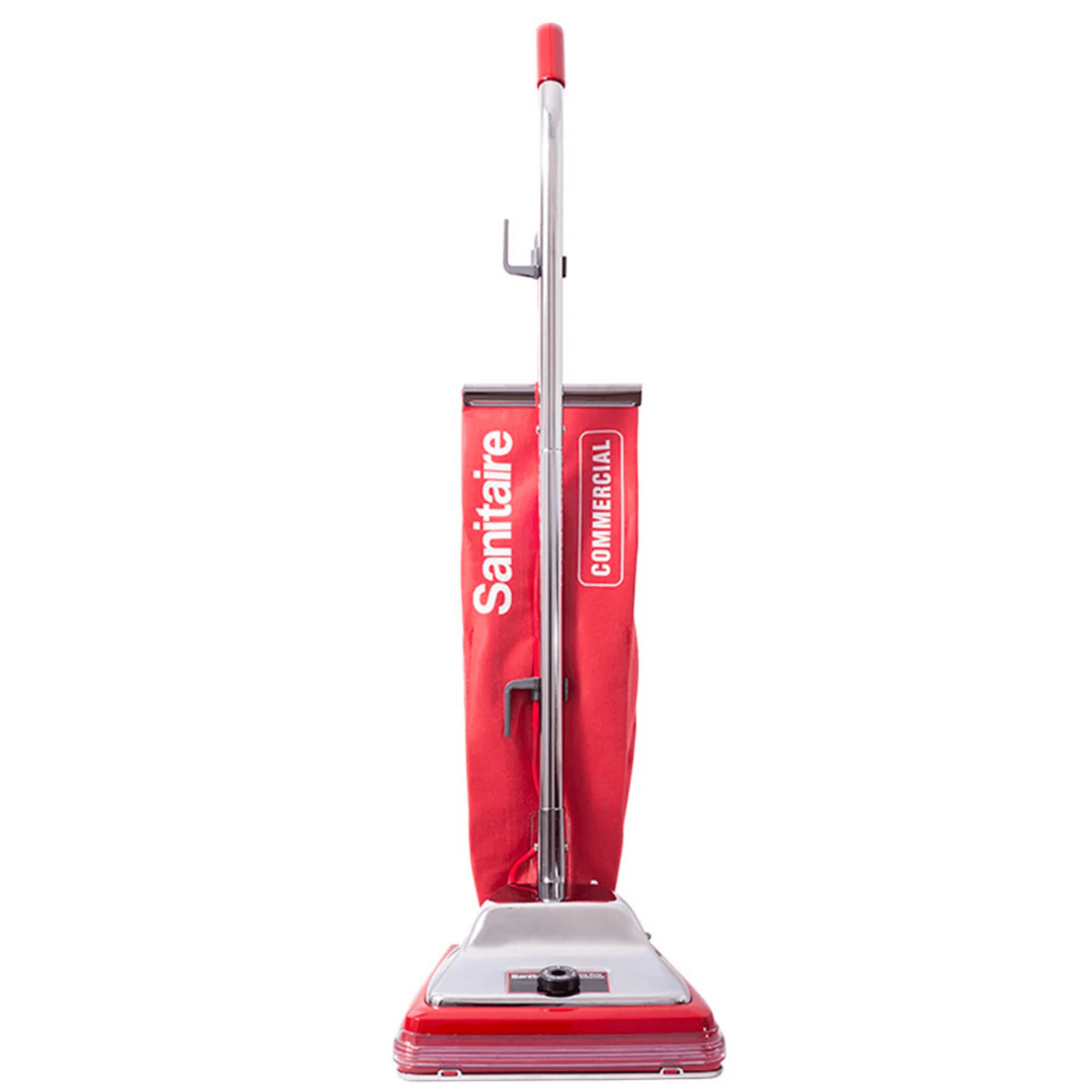

The Sanitaire Tradition SC886G Commercial Upright Vacuum Cleaner is a heavy-duty cleaning solution designed for hotels, offices, and retail environments. Powered by a 7-amp motor, this vacuum delivers consistent suction power for deep carpet cleaning. The 12-inch cleaning path efficiently covers large areas, reducing cleaning time and effort.
With a 50-foot commercial-grade power cord, users can clean without frequent outlet changes, ensuring smooth and uninterrupted operation. The shake-out bag system offers a low-maintenance, cost-saving solution by eliminating the need for disposable bags. Built with a chrome hood and a metal brush roll, the SC886G is made for durability, withstanding the rigors of daily commercial use.
SC886F-SC886G Parts List
Key | Part # | Description |
---|---|---|
1 | 157746 | UPRIGHT HANDLE & GRIP ASSEMBLY |
2 | 89068SAN | Grip, Handle, Rich Red |
3 | 53077SAN | SPRING - STRAIN RELIEF PK |
4 | 53574A5 | CORD RETAINER SET |
5 | 76225355N | Cord Clip |
6 | 1623452 | SUPPLY CORD ASSEMBLY |
7 | 1621293 | EXTENSION CORD |
8 | 53122 | STRAIN RELIEF BUSHING - PKGD |
9 | 126378 | TUBE - HANDLE (LOWER) |
10 | 53198A1 | HANDLE SCREW ASSY PACKAGE |
11 | 5323814 | SCREW PACKAGE |
12 | 53140 | CLAMP & SCREW ASSY PKG |
13 | 35947A | AXLE - FRONT |
14 | 530762 | SPRING - AXLE PACKAGE (6) |
15 | 35859A1 | WHEEL - FRONT |
16 | 53270A | DISTURBULATOR ASSEMBLY |
17 | 26059A | CAP - COVER |
18 | 54256A1 | BEARING & RETAINER ASSEMBLY |
19 | 52282A4 | BRISTLE STRIP PACKAGE |
20 | 25937SAN | SHAFT - DISTURBULATOR |
21 | 53184 | KLIPRING PACKAGE |
22 | 132363 | TUBE - DISTURBULATOR |
23 | 530885 | BALL BEARING - PACKAGE |
24 | 26057A | CAP - DISTURBULATOR |
25 | 49899 | WASHER - FELT |
26 | 53158 | LOCK NUT PACKAGE |
27 | 47722 | SPRING - BAG |
28 | 30599D10 | CLIP - BAG |
29 | 54582A4 | BAG ASSEMBLY - PACKAGED |
30 | 541741 | ADAPTER - BAG |
31 | 48749 | PACKAGE - RIVET |
32 | 48748 | WASHER |
33 | 48282A | GASKET - BAG ADAPTER |
34 | 555352 | CLAMP - AXLE |
35 | 5323811 | SCREW PACKAGE |
36 | 60161 | WHEEL & AXLE ASSY |
37 | 37183 | AXLE - REAR |
38 | 53121 | PUSH NUT PACKAGE (10) |
39 | 53110 | WASHER - WHEEL PACKAGE (10) |
40 | 26242119N | WHEEL - REAR |
41 | 285041 | GUARD - FURNITURE |
42 | 30563B | BELT - DRIVE (STYLE RD) |
42 | 66100 | BELT - DRIVE (STYLE RD) 2 PACK |
42 | 69153A | BELT - DRIVE (STYLE RD) 10 PACK |
43 | 259221 | BOTTOM PLATE ASSEMBLY |
44 | 532136 | NUT - HEX |
45 | 53102 | LOCKWASHER PACKAGE (10) |
46 | 3640913 | SWITCH - PUSH |
47 | 540972 | HOOD & NAMEPLATE ASSY - PKGD |
48 | 532282 | SCREWS - PACKAGE 10 |
49 | 532134 | NUTS - PACKAGE 10 |
50 | 53143 | SCREW PACKAGE (10) |
51 | 380532 | KNOB ASSEMBLY |
52 | 53117 | SPRING - HOOD PACKAGE (10) |
53 | 5323813 | SCREW PACKAGE |
54 | 53160 | CABLE CLAMP PACKAGE |
55 | 5435217 | MOTOR ASSEMBLY - PACKAGED |
56 | 467135 | TIE - CABLE (PURCHASED) |
57 | 12988SAN | FAN BLOWER - MOTOR |
58 | UAU00000000K06 | PULLEY - MOTOR DRIVE |
59 | 53148 | WASHER - FAN PACKAGE (10) |
60 | 30517A | GASKET - MOTOR SEAL |
61 | 490523 | TAPE - FOAM |
62 | 56379SV | DUCT ASSY (R) |
63 | 56380SV | DUCT ASSY (L) |
64 | 36263 | COVER - WHEEL |
65 | 5572618 | BASE ASSEMBLY |
66 | 24964A1 | CAM (RIGHT) |
67 | 24965A1 | CAM (LEFT) |
68 | 52334 | FAN CHAMBER REPLACEMENT KIT |
69 | 137701 | COVER - FAN SCROLL |
70 | 532135 | NUTS - PACKAGE 10 |
71 | 53145 | BOLT PACKAGE (10) |
72 | 381831SV | HANDLE SOCKET ASSEMBLY |
73 | 36439 | SHIELD - HANDLE SOCKET |
74 | 24834A5 | PEDAL - FOOT |
75 | 53097 | SPRING - FOOT PEDAL PKG (5) |
76 | 37034 | SPRING - ADAPT RETAINER |
77 | 601921 | WIRE SPLICE 5 |
