- Extended Life Motor: 7-amp, 840-watt commercial motor rated for 2,000 hours of operation
- CFM Airflow: 145 for high-performance suction
- Cleaning Width: 12 inches for efficient cleaning coverage
- Dust Containment: 1.9 qt. dirt cup eliminates the need for bags, reducing operational costs
- Cord Length: 50-foot quick-change, pigtail cord for minimal downtime and extended reach
- Brush Roll: Chrome brush roll with replaceable bristle strips for long-lasting durability
- Easy Maintenance: Quick Kleen™ fan chamber allows for easy clog removal and servicing
- Tool-Free Maintenance: Quick-release dirt cup and tool-free belt and brush roll replacement
- Durability: Chrome hood for tough commercial environments
- Comfort & Maneuverability: Looped handle for added user comfort and control

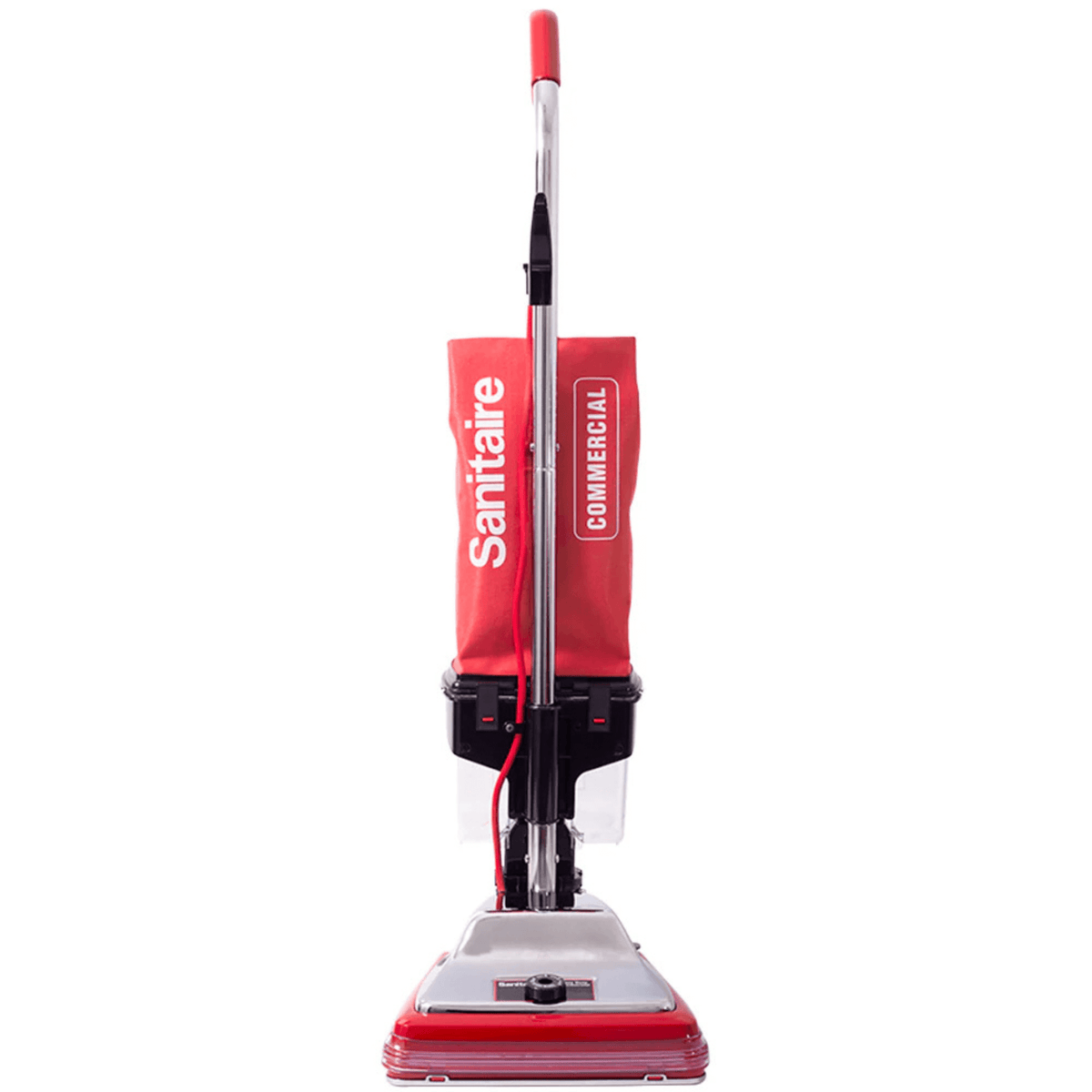

The Sanitaire Tradition SC887E Commercial Upright Vacuum Cleaner is built for powerful, long-lasting performance in demanding commercial settings. Equipped with a 7-amp, 840-watt motor rated for 2,000 hours, this vacuum delivers high 145 CFM suction power for deep carpet cleaning. The 1.9 qt. dirt cup eliminates the need for disposable bags, offering cost-effective operation with easy emptying.
Designed for durability, the chrome hood and metal brush roll withstand rigorous daily use, while the Quick Kleen™ fan chamber allows for easy clog removal and servicing. Maintenance is effortless with a quick-release dirt cup, tool-free brush roll, and belt replacement. The 50-foot quick-change pigtail cord ensures extended reach while reducing downtime, making it a highly efficient cleaning solution.
SC887D-E Parts List
Key | Part # | Description |
---|---|---|
1 | 157747 | UPRIGHT HANDLE & GRIP ASSEMBLY |
2 | 89068SAN | Grip, Handle, Rich Red |
3 | 53077SAN | SPRING - STRAIN RELIEF PK |
4 | 14766119N | RETAINER - CORD (UPPER) |
5 | 76225355N | Cord Clip |
6 | 1623452 | SUPPLY CORD ASSEMBLY |
7 | 76224 | EXTENSION CORD |
8 | 53122 | STRAIN RELIEF BUSHING - PKGD |
9 | 272612 | TUBE - HANDLE (LOWER) |
10 | 53198A1 | HANDLE SCREW ASSY PACKAGE |
11 | 5323814 | SCREW PACKAGE |
12 | 53140 | CLAMP & SCREW ASSY PKG |
13 | 35947A | AXLE - FRONT |
14 | 530762 | SPRING - AXLE PACKAGE (6) |
15 | 35859A1 | WHEEL - FRONT |
16 | 53270A | DISTURBULATOR ASSEMBLY |
17 | 26059A | CAP - COVER |
18 | 54256A1 | BEARING & RETAINER ASSEMBLY |
19 | 52282A4 | BRISTLE STRIP PACKAGE |
20 | 25937SAN | SHAFT - DISTURBULATOR |
21 | 53184 | KLIPRING PACKAGE |
22 | 132363 | TUBE - DISTURBULATOR |
23 | 530885 | BALL BEARING - PACKAGE |
24 | 26057A | CAP - DISTURBULATOR |
25 | 49899 | WASHER - FELT |
26 | 53158 | LOCK NUT PACKAGE |
27 | 57711 | RING STEEL |
28 | 576861 | HOOK - SNAP |
29 | 5442210 | BAG ASSEMBLY - PACKAGED |
30 | 1621850 | Assy, Dirt Cup, San Vac, REPL |
31 | 147651 | FLANGE - BAG (OUTER) |
32 | 553991 | PIN COVER |
33 | 01959313N | DIRT CUP |
34 | 555352 | CLAMP - AXLE |
35 | 5323811 | SCREW PACKAGE |
36 | 60161 | WHEEL & AXLE ASSY |
37 | 37183 | AXLE - REAR |
38 | 53121 | PUSH NUT PACKAGE (10) |
39 | 53110 | WASHER - WHEEL PACKAGE (10) |
40 | 26242119N | WHEEL - REAR |
41 | 285041 | GUARD - FURNITURE |
42 | 30563B | BELT - DRIVE (STYLE RD) |
42 | 66100 | BELT - DRIVE (STYLE RD) 2 PACK |
42 | 69153A | BELT - DRIVE (STYLE RD) 10 PACK |
43 | 259221 | BOTTOM PLATE ASSEMBLY |
44 | 532136 | NUT - HEX |
45 | 53102 | LOCKWASHER PACKAGE (10) |
46 | 3640913 | SWITCH - PUSH |
47 | 540972 | HOOD & NAMEPLATE ASSY - PKGD |
48 | 532282 | SCREWS - PACKAGE 10 |
49 | 532134 | NUTS - PACKAGE 10 |
50 | 53143 | SCREW PACKAGE (10) |
51 | 380532 | KNOB ASSEMBLY |
52 | 53117 | SPRING - HOOD PACKAGE (10) |
53 | 5323813 | SCREW PACKAGE |
54 | 53160 | CABLE CLAMP PACKAGE |
55 | 5435217 | MOTOR ASSEMBLY - PACKAGED |
56 | 467135 | TIE - CABLE (PURCHASED) |
57 | 12988SAN | FAN BLOWER - MOTOR |
58 | UAU00000000K06 | PULLEY - MOTOR DRIVE |
59 | 53148 | WASHER - FAN PACKAGE (10) |
60 | 30517A | GASKET - MOTOR SEAL |
61 | 490523 | TAPE - FOAM |
62 | 56379SV | DUCT ASSY (R) |
63 | 56380SV | DUCT ASSY (L) |
64 | 36263 | COVER - WHEEL |
65 | 5572618 | BASE ASSEMBLY |
66 | 24964A1 | CAM (RIGHT) |
67 | 24965A1 | CAM (LEFT) |
68 | 52334 | FAN CHAMBER REPLACEMENT KIT |
69 | 137701 | COVER - FAN SCROLL |
70 | 532135 | NUTS - PACKAGE 10 |
71 | 53145 | BOLT PACKAGE (10) |
72 | 381831SV | HANDLE SOCKET ASSEMBLY |
73 | 36439 | SHIELD - HANDLE SOCKET |
74 | 24834A5 | PEDAL - FOOT |
75 | 53097 | SPRING - FOOT PEDAL PKG (5) |
76 | 37034 | SPRING - ADAPT RETAINER |
77 | 601921 | WIRE SPLICE 5 |
78 | 38289 | GASKET |
79 | 545611 | DUST CUP SUPPORT & LATCH ASSY |
80 | 262662 | CLAMP |
81 | 147631 | BELLOWS |
82 | 382881 | CLAMP - BELLOWS |
83 | 1624888 | BAG ADAPTER ASSEMBLY |
