- Wide Area Cleaning: 16-inch cleaning path for 33% more productivity
- Extended Life Motor: 7-amp, 840-watt commercial-grade motor rated for 2,000 hours
- CFM Airflow: 145 CFM for deep cleaning power
- Dust Containment: 18-qt shake-out bag for long-lasting operation with less downtime
- Cord Length: 50-foot quick-change, pigtail cord for easy maintenance and extended reach
- Durability: Chrome hood and chrome brush roll with replaceable bristle strips for long-lasting performance
- Easy Maintenance: Quick Kleen™ fan chamber allows for easy clog removal and servicing
- Tool-Free Maintenance: Brush roll and belt replacement without tools for quick upkeep
- User Comfort: Looped handle for added maneuverability and ease of use

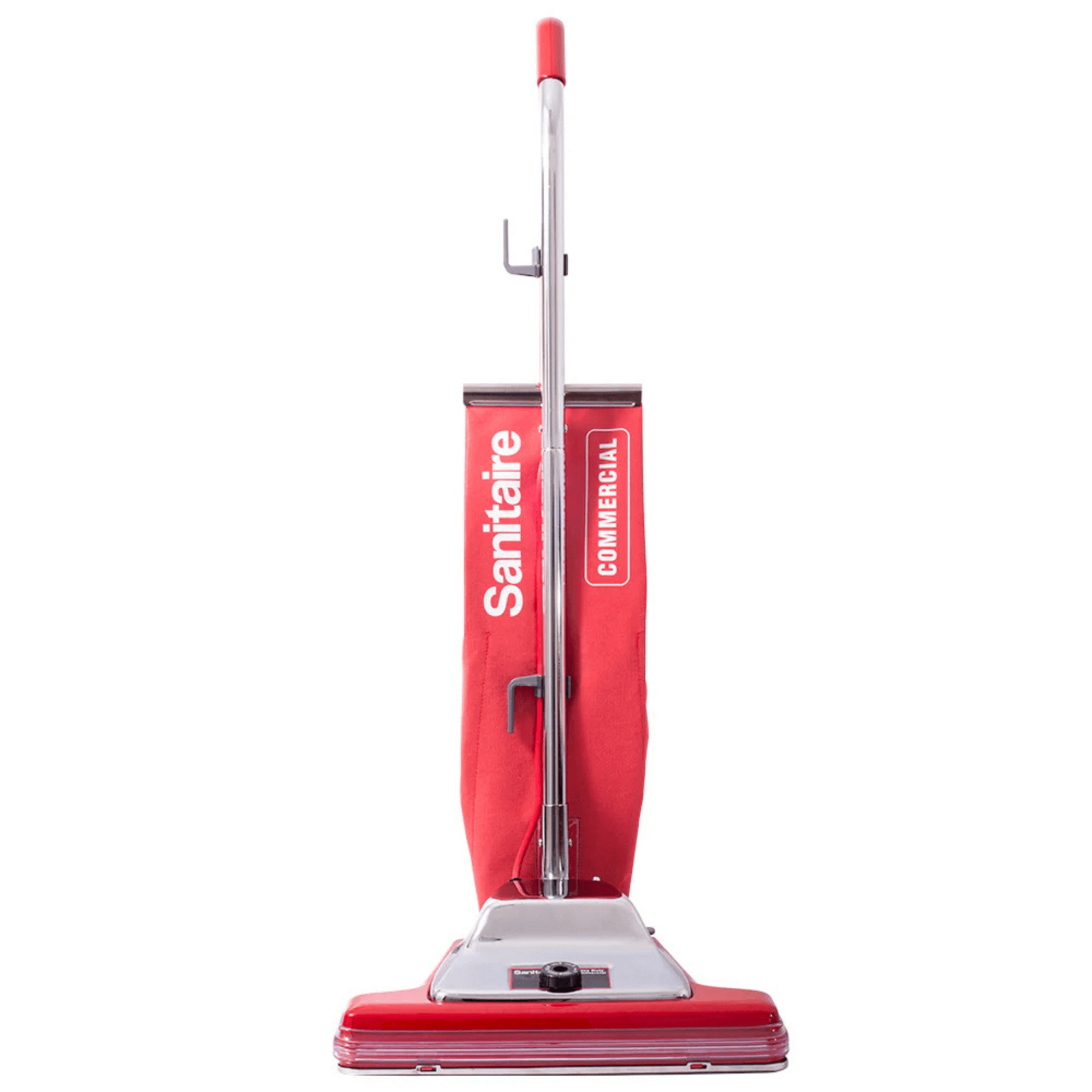

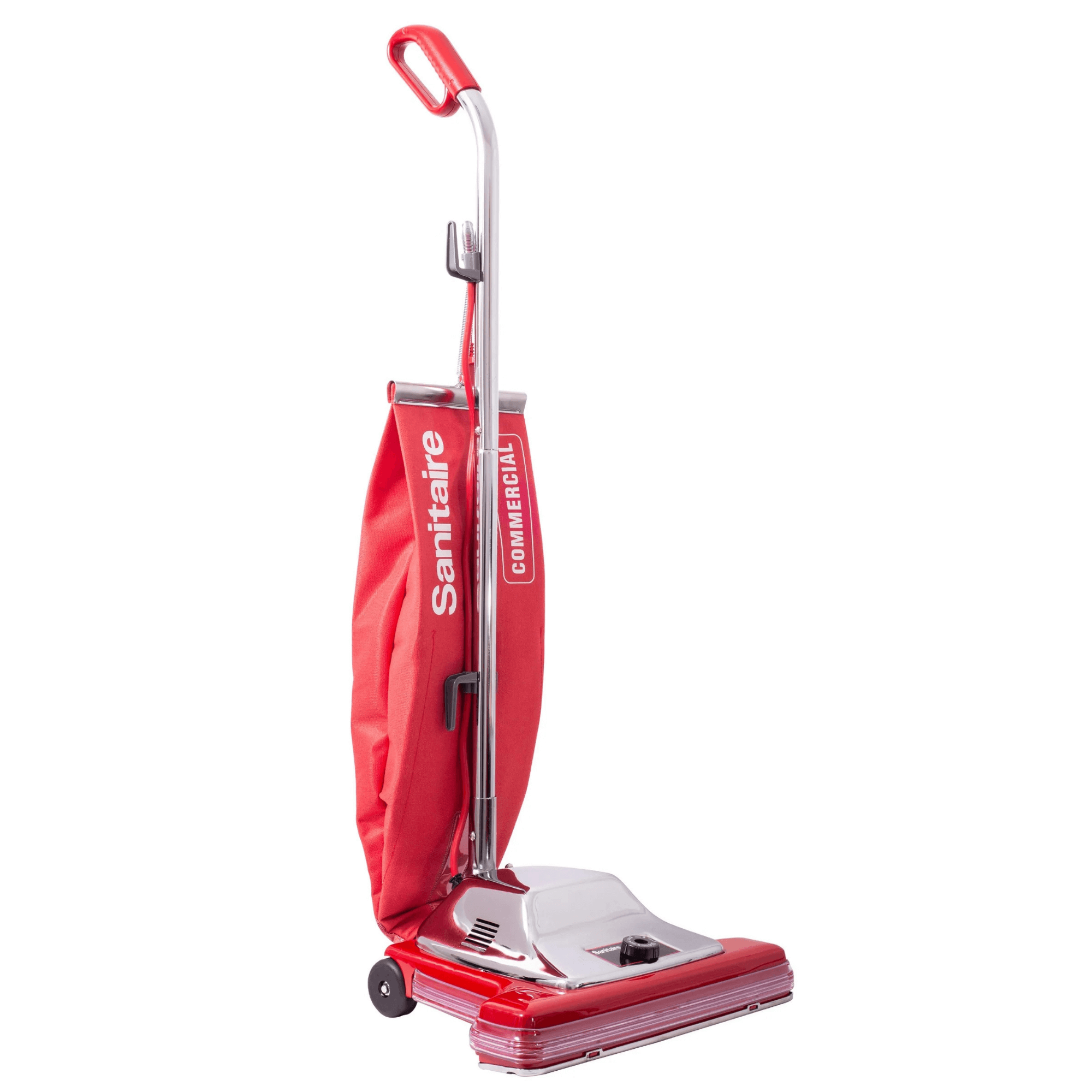

The Sanitaire Tradition SC899H Wide Track® Commercial Upright Vacuum Cleaner is built for high-efficiency cleaning in large spaces, increasing productivity by 33% with its 16-inch cleaning path. Designed for commercial durability, it features a chrome hood and a chrome brush roll with replaceable bristle strips, ensuring long-lasting performance in hotels, offices, and retail environments.
The 7-amp, 840-watt motor provides powerful 145 CFM suction, effectively removing debris from carpets and high-traffic areas. The 18-qt shake-out bag minimizes downtime by allowing for longer cleaning sessions without frequent emptying. The Quick Kleen™ fan chamber enables easy clog removal and maintenance, while the tool-free brush roll and belt replacement simplify upkeep.
With a 50-foot quick-change pigtail cord, this vacuum allows for efficient, uninterrupted cleaning while making cord replacements simple and cost-effective. Additionally, the looped handle enhances maneuverability and user comfort, making extended cleaning tasks easier.

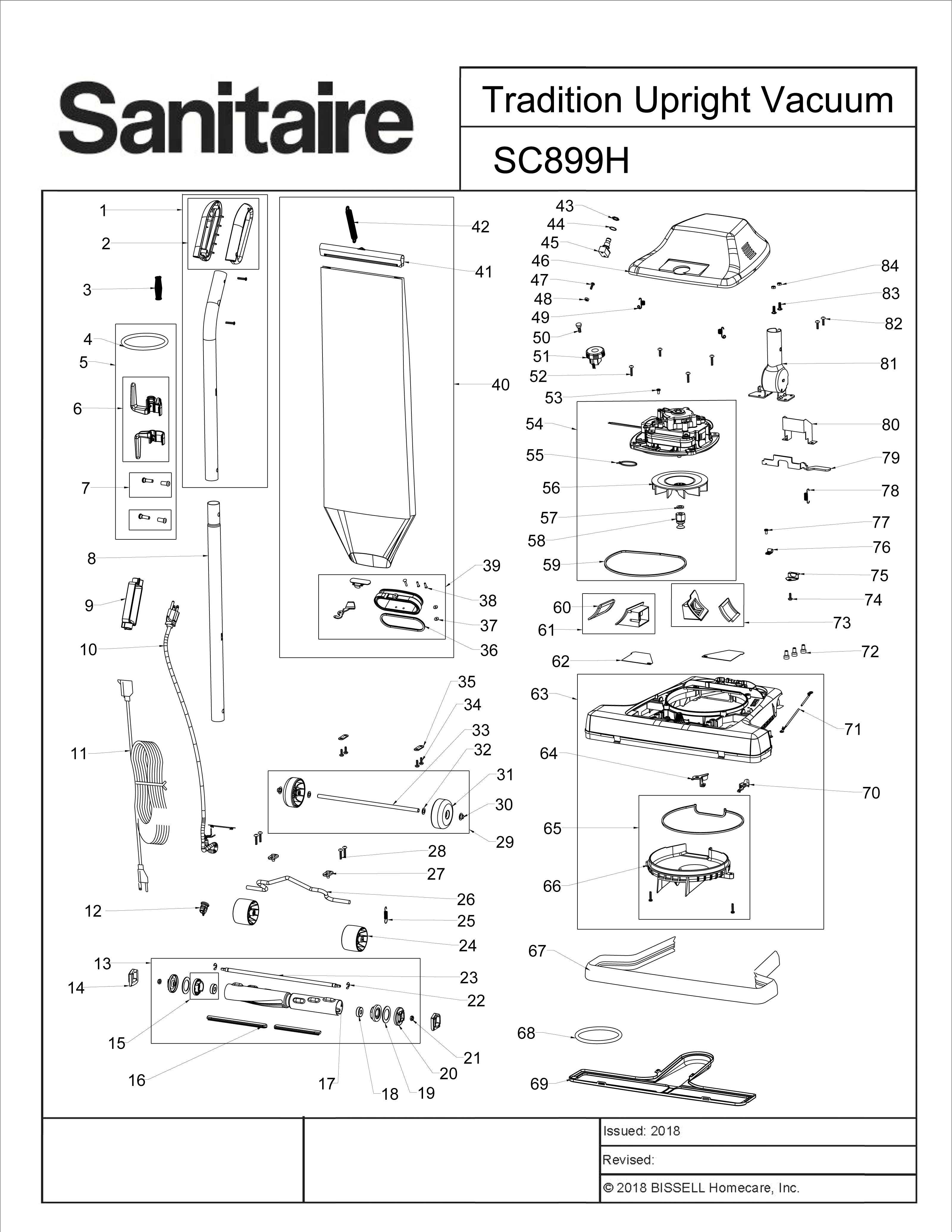

SC899H Parts List
Key | Part # | Description |
---|---|---|
1 | 157746 | UPRIGHT HANDLE & GRIP ASSEMBLY |
2 | 89068SAN | Grip, Handle, Rich Red |
3 | 53077SAN | SPRING - STRAIN RELIEF PK |
4 | 30563B | BELT - DRIVE (STYLE RD) |
4 | 66100 | BELT - DRIVE (STYLE RD) 2PACK |
4 | 69153A | BELT - DRIVE (STYLE RD) 10 PACK |
5 | 49461B6 | HARDWARE PKG - COMM UPRIGHT |
6 | 53574A5 | CORD RETAINER SET |
7 | 53198A1 | HANDLE SCREW ASSY PACKAGE |
8 | 126378 | TUBE - HANDLE (LOWER) |
9 | 76225355N | Cord Lock |
10 | 1623452 | SUPPLY CORD ASSEMBLY |
11 | 1621293 | EXTENSION CORD |
12 | 531224 | STRAIN RELIEF BUSHING - PKGD |
13 | 53271 | DISTURBULATOR ASSEMBLY |
14 | 26059A | CAP - COVER |
15 | 54256A1 | BEARING & RETAINER ASSEMBLY |
16 | 522461 | BRISTLE STRIP PACKAGE |
17 | 011652 | TUBE - DISTURBULATOR |
18 | 530885 | BALL BEARING - PACKAGE |
19 | 49899 | WASHER - FELT |
20 | 53158 | LOCK NUT PACKAGE |
21 | 26057A | CAP - DISTURBULATOR |
22 | 53184 | KLIPRING PACKAGE |
23 | 25944SAN | SHAFT - DISTURBULATOR |
24 | 35859A1 | WHEEL - FRONT |
25 | 530762 | SPRING - AXLE PACKAGE (6) |
26 | 35947A | AXLE - FRONT |
27 | 53140 | CLAMP & SCREW ASSY PKG |
28 | 5323814 | SCREW PACKAGE |
29 | 60161 | WHEEL & AXLE ASSY |
30 | 53121 | PUSH NUT PACKAGE (10) |
31 | 26242119N | WHEEL - REAR |
32 | 53110 | WASHER - WHEEL PACKAGE (10) |
33 | 37183 | AXLE - REAR |
34 | 5323811 | SCREW PACKAGE |
35 | 53201 | CLAMP - AXLE |
36 | 48282A | GASKET - BAG ADAPTER |
37 | 48748 | WASHER |
38 | 48749 | PACKAGE - RIVET |
39 | 522532 | ADAPTER - BAG |
40 | 54582A4 | BAG ASSEMBLY - PACKAGED |
41 | 30599D10 | CLIP - BAG |
42 | 47722 | SPRING - BAG |
43 | 554461 | NUT - HEX |
44 | 53102 | LOCKWASHER PACKAGE (10) |
45 | 3640913 | SWITCH - PUSH |
46 | 540972 | HOOD & NAMEPLATE ASSY - PKGD |
47 | 532282 | SCREWS - PACKAGE 10 |
48 | 532134 | NUTS - PACKAGE 10 |
49 | 53117 | SPRING - HOOD PACKAGE (10) |
50 | 53143 | SCREW PACKAGE (10) |
51 | 380532 | KNOB ASSEMBLY |
52 | 5323813 | SCREW PACKAGE |
53 | 532282 | SCREW PACKAGE |
54 | 5435217 | MOTOR ASSEMBLY - PACKAGED |
55 | 467135 | TIE - CABLE (PURCHASED) |
56 | 12988SAN | FAN BLOWER - MOTOR |
57 | 53148 | WASHER - FAN PACKAGE (10) |
58 | 370122 | PULLEY - MOTOR DRIVE |
59 | 30517A | GASKET - MOTOR SEAL |
60 | 490523 | TAPE - FOAM |
61 | 563791 | DUCT ASSY (R) |
62 | 36263 | COVER - WHEEL |
63 | 5574212 | BASE ASSEMBLY |
64 | 24964A1 | CAM (RIGHT) |
65 | 52334 | FAN CHAMBER REPLACEMENT KIT |
66 | 137701 | COVER - FAN SCROLL |
67 | 285042 | GUARD - FURNITURE |
68 | 30563B | BELT - DRIVE (STYLE RD) |
68 | 66100 | BELT - DRIVE (STYLE RD) 2PACK |
68 | 69153A | BELT - DRIVE (STYLE RD) 10 PACK |
69 | 25672A | BOTTOM PLATE ASSEMBLY |
70 | 24965A1 | CAM (LEFT) |
71 | 55296 | WIRE & TERMINAL ASSEMBLY |
72 | 601921 | WIRE SPLICE 5 |
73 | 563801 | DUCT ASSY (L) |
75 | 37034 | SPRING - ADAPT RETAINER |
76 | 53160 | CABLE CLAMP PACKAGE |
78 | 53097 | SPRING - FOOT PEDAL PKG (5) |
79 | 24834A5 | PEDAL - FOOT |
80 | 36439 | SHIELD - HANDLE SOCKET |
81 | 36648A6 | HANDLE SOCKET ASSEMBLY |
82 | 5323814 | SCREW PACKAGE |
83 | 53145 | BOLT PACKAGE (10) |
84 | 532135 | NUTS - PACKAGE 10 |
