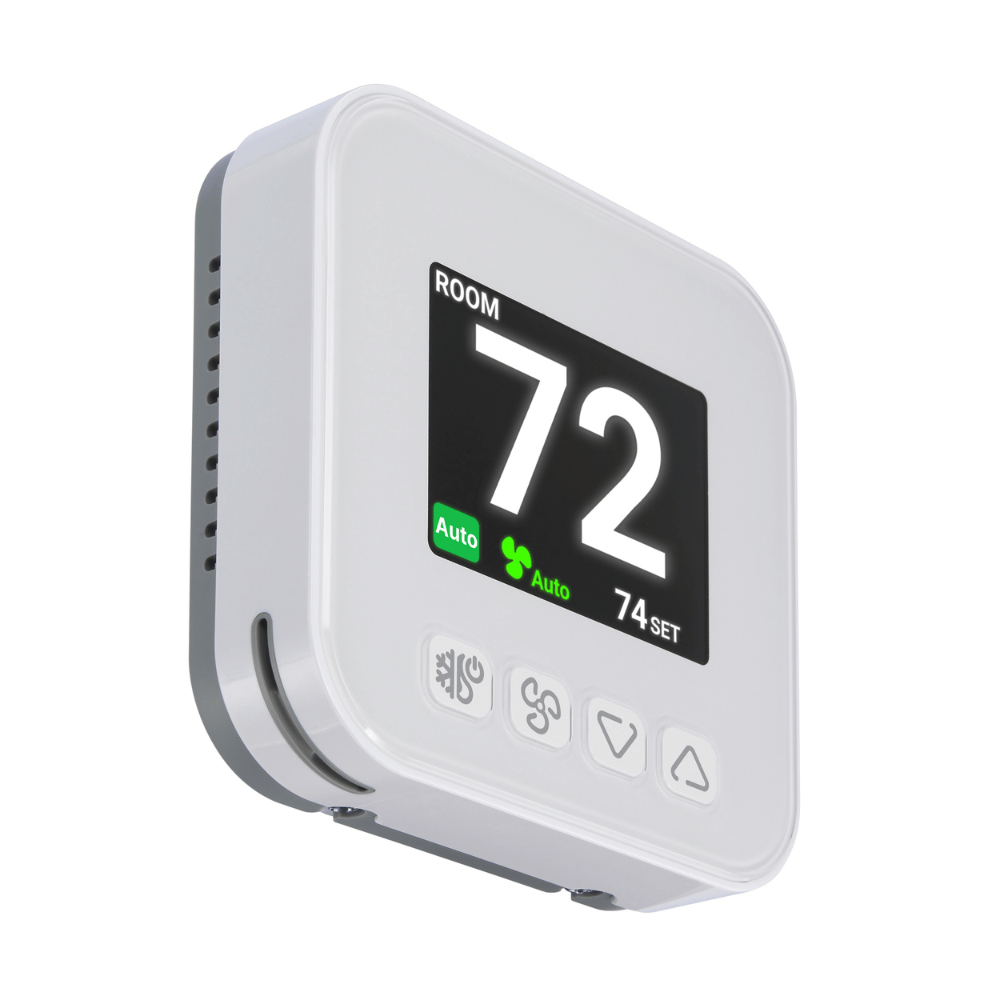

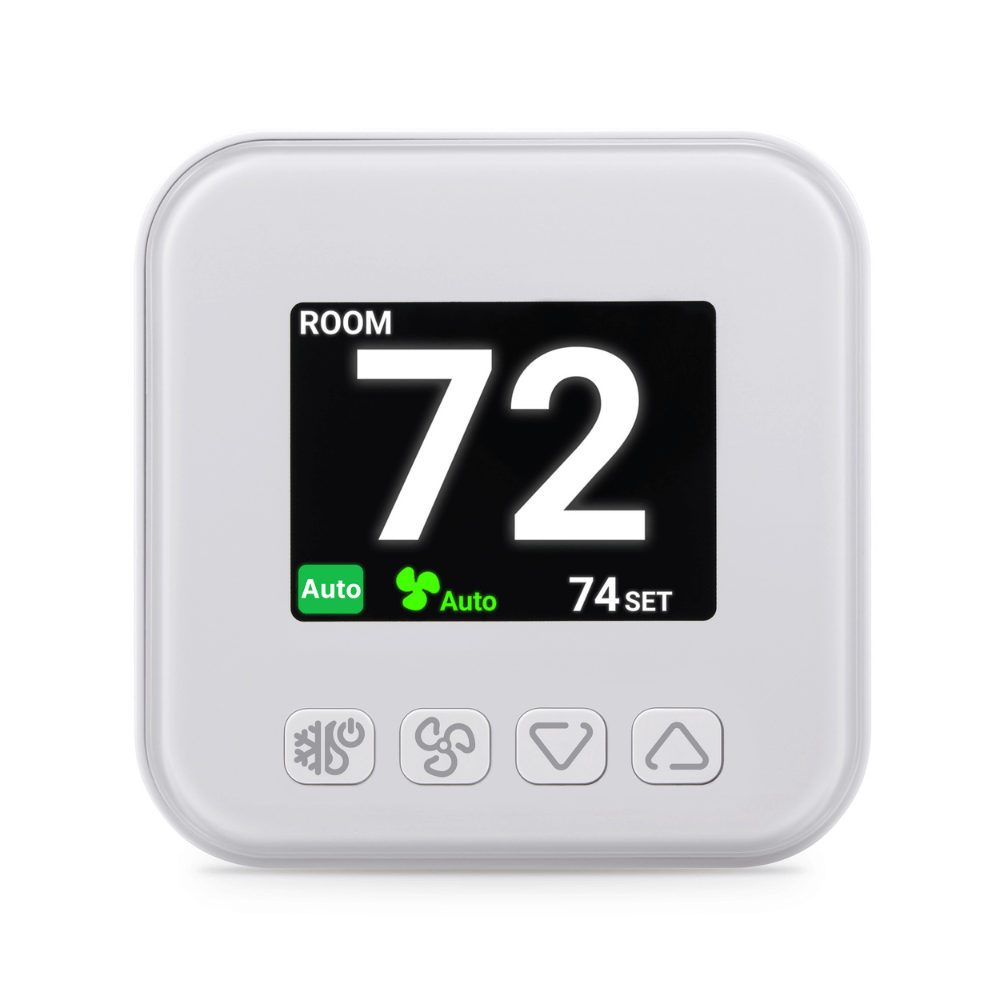

T961NN50 Universal Wired Thermostat – Efficient Climate Control for PTAC, VTAC, and Heat Pump Systems

Specifications

• Model Number: T961NN50
• Display: 2.8" TFT with configurable backlight (240 x 320 RGB resolution)
• Power Requirements: C-wire, 24V AC ~50/60Hz 0.5A
• Dimensions: 3.9" x 3.9" x 1" (9.9 cm x 9.9 cm x 2.26 cm)
• Temperature Range: 33-99°F (+/-1°F) / 1-37°C (+/-0.5°C), configurable via EC Tool Pro App
• Modes: Heat, Cool, Auto Changeover, and Off
• Compatible Systems: PTAC, VTAC, Heat Pump, and Conventional HVAC systems
• Mounting: Surface mount or junction box
• Connections: R, C, G/Gl, W2/O/B, W1/AUX, Y/Y1, Y2/Gh
• Maximum Stages Supported:
  • PTAC/VTAC: 2H1C 2-speed Fan
  • Heat Pump: 3H2C 1-speed Fan
  • Conventional: 2H2C 1-speed Fan

Key Features

• Intuitive 2.8" Display: Large, dimmable screen for easy navigation through settings.
• Antibacterial Plastic: Inhibits 99.9% of bacterial growth, ensuring a healthier environment.
• Customizable Temperature Thresholds: Predefine guest-accessible temperature limits to reduce energy consumption.
• Manual and Auto Changeover Modes: Effortlessly switch between heating and cooling modes for optimal comfort.
• Secure NFC Setup: Fast, secure provisioning via the EC Tool Pro App, compatible with Android and iOS devices.
• Programmable Options: Configure as 7-day, 5-1-1 day, 5-2 day, or non-programmable via the EC Tool Pro App.
• Filter Change Reminders: Built-in alerts to maintain HVAC efficiency.
• System Compatibility: Supports gas or electric systems with single transformer (24V) applications.

Included in the Box

• T961NN50 Thermostat
• Mounting Plate
• Deco Plate
• Hardware

Certifications

• Approvals: FCC Part 15B, Part 15.247, Part 15.249, UL60730-1, UL60730-2-9, UL62368-1, CAN/CSA-C22.2, RoHS, REACH

Applications

The T961NN50 Universal Wired Thermostat is the ultimate solution for hotels, motels, and commercial buildings, offering unmatched efficiency and user-friendly features. Its sleek design and antibacterial materials provide a modern, clean look while enhancing energy management. Compatible with PTAC, VTAC, heat pumps, and conventional HVAC systems, it ensures optimal climate control for professional environments.
