- Model: SC684G
- Vacuum Type: TRADITION™ Commercial Upright
- Motor Power: 7 amps, delivering 145 CFM airflow
- Bag Type: 18-quart reusable shake-out bag for extended cleaning
- Construction: Chrome steel brush roll with replaceable bristle strips
- Cord Length: 50 feet for extended reach
- Filtration: High-efficiency filtration system
- Usage: Ideal for hotels, offices, retail spaces, and commercial cleaning applications
The SC684G TRADITION® Upright Vacuum is engineered for commercial cleaning professionals, delivering powerful performance, durability, and ease of maintenance. Featuring a 7-amp motor producing 145 CFM, this vacuum ensures deep and efficient dirt removal from carpets and hard floors. The 50-foot power cord provides extended reach, reducing the need for frequent unplugging, while the 18-quart shake-out bag allows for longer cleaning sessions with minimal interruptions.
Designed for easy upkeep, this vacuum includes a tool-free brush roll and belt replacement system and a metal clip bag-release mechanism for quick and hassle-free maintenance. Weighing just 15.4 lbs, it is lightweight yet durable, ideal for hotels, offices, and janitorial services. The chrome brush roll with replaceable bristle strips enhances longevity, ensuring consistent cleaning performance over time. Whether tackling daily cleaning tasks or high-traffic areas, the SC684G TRADITION® Upright Vacuum is the reliable choice for commercial cleaning needs.

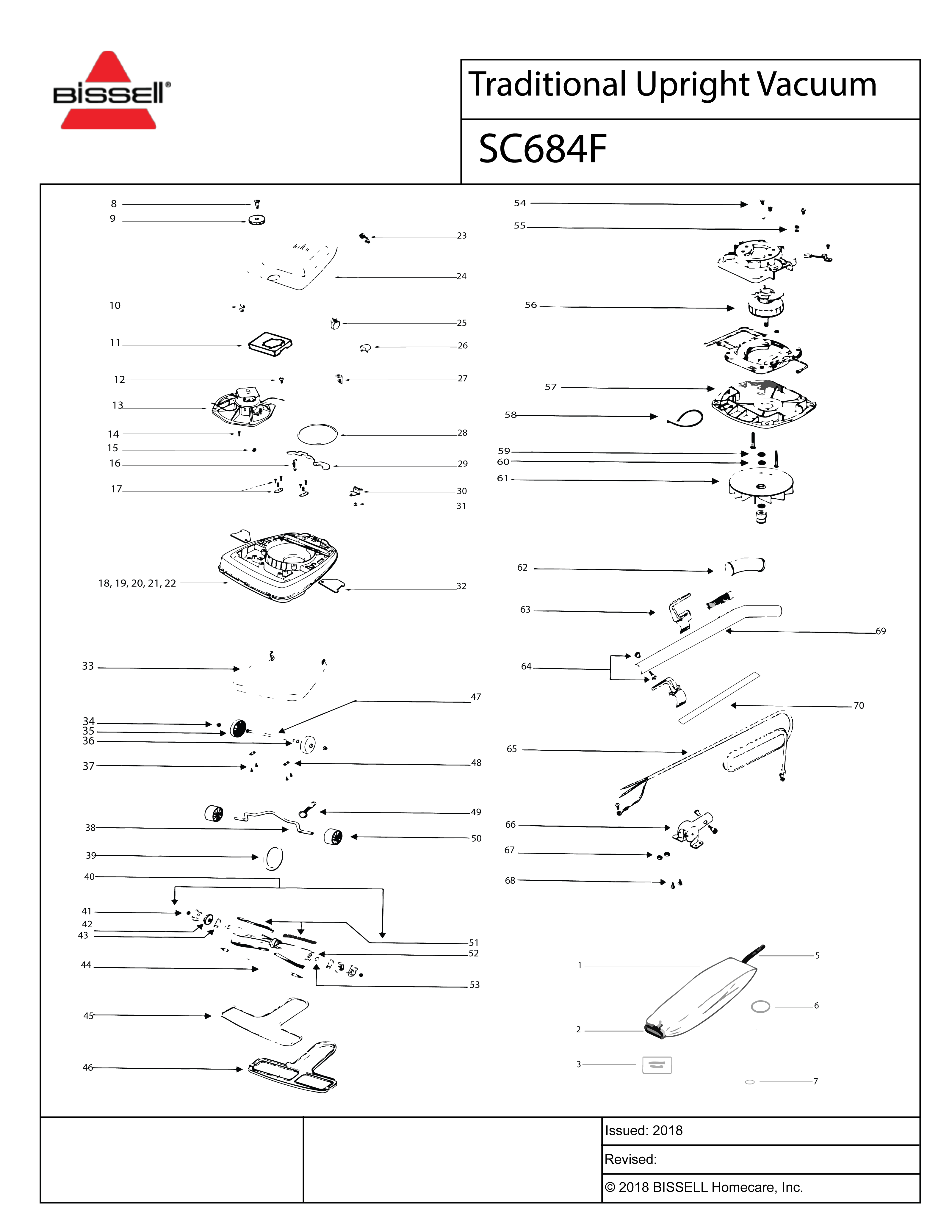

TRADITIONAL UPRIGHT VACUUM - SC684F Parts List
| Key | Part # | Description |
|---|---|---|
| 1 | 54582A4 | BAG ASSEMBLY - PACKAGED |
| 2 | 49461B6 | HARDWARE PKG - COMM UPRIGHT |
| 3 | 541741 | ADAPTER - BAG |
| 5 | 47722 | SPRING - BAG |
| 6 | 48282A | GASKET - BAG ADAPTER |
| 7 | 30599D10 | CLIP - BAG |
| 8 | 53143 | SCREW PACKAGE (10) |
| 9 | 380532 | KNOB ASSEMBLY |
| 10 | 601921 | WIRE SPLICE 5 |
| 11 | 380672SV | SEPARATOR ASSEMBLY |
| 12 | 5323814 | SCREW PACKAGE |
| 13 | 159422 | MOTOR CHANGE KIT (7AMP) |
| 14 | 546692 | SCREW PACKAGE |
| 15 | 532135 | NUTS - PACKAGE 10 |
| 16 | 53097 | SPRING - FOOT PEDAL PKG (5) |
| 17 | 53140 | CLAMP & SCREW ASSY PKG |
| 18 | 579006 | BASE ASSEMBLY - 12 INCH |
| 19 | 24964A1 | CAM (RIGHT) |
| 20 | 24965A1 | CAM (LEFT) |
| 21 | 53118 | RIVET - SHOULDER PACKAGE (10) |
| 22 | 53133 | STEEL WASHERS - PACKAGE 10 |
| 23 | 53122 | STRAIN RELIEF BUSHING - PKGD |
| 24 | 1477815R1 | HOOD & GRAPHICS ASSY |
| 25 | 137385 | SWITCH ASSEMBLY |
| 26 | 146601 | BUTTON - SWITCH |
| 27 | 37989 | CLIP - SWITCH |
| 28 | 30517A | GASKET - MOTOR SEAL |
| 29 | 24834A5 | PEDAL - FOOT |
| 30 | 37034 | SPRING - ADAPT RETAINER |
| 31 | 5323811 | SCREW PACKAGE |
| 32 | 36263 | COVER - WHEEL |
| 33 | 285041 | GUARD - FURNITURE |
| 34 | 53121 | PUSH NUT PACKAGE (10) |
| 35 | 26242119N | WHEEL - REAR |
| 36 | 53110 | WASHER - WHEEL PACKAGE (10) |
| 37 | 5323811 | SCREW PACKAGE |
| 38 | 35947A | AXLE - FRONT |
| 39 | 30563B / 66100 / 69153A | BELT - DRIVE (STYLE RD) |
| 40 | 53270A | BrushRoll/ Distribulator Assembly |
| 41 | 53158 | LOCK NUT PACKAGE |
| 42 | 26059A | CAP - COVER |
| 43 | 54256A1 | BEARING & RETAINER ASSEMBLY |
| 44 | 25937SAN | SHAFT - DISTURBULATOR |
| 45 | 46538 | TAPE - FOAM NLA |
| 46 | 259221 | BOTTOM PLATE ASSEMBLY |
| 47 | 37183 | AXLE - REAR |
| 48 | 53201 | AXLE CLAMP - PACKAGED |
| 49 | 530762 | SPRING & AXLE PACKAGE (6) |
| 50 | 35859A1 | WHEEL - FRONT |
| 51 | 52282A4 | BRISTLE STRIP PACKAGE |
| 52 | 132363 | TUBE - DISTURBULATOR |
| 53 | 53184 | KLIPRING PACKAGE |
| 54 | 53138 | SCREWS - PACKAGE 10 |
| 55 | 532134 | NUTS - PACKAGE 10 |
| 56 | 530885 | BALL BEARING - PACKAGE |
| 57 | 159422 | MOTOR CHANGE KIT (7AMP) |
| 58 | 467135 | TIE - CABLE (PURCHASED) |
| 59 | 531881 | WASHER PACKAGE |
| 60 | 53148 | WASHER - FAN PACKAGE (10) |
| 61 | 12988SAN | FAN BLOWER - MOTOR |
| 62 | 3529322 | GRIP - HANDLE |
| 63 | 53574A5 | CORD RETAINER SET |
| 64 | 53198A1 | HANDLE SCREW ASSY PACKAGE |
| 65 | 5237012 | CORD & TERMINAL ASSY-FB-50 |
| 66 | 381831SV | HANDLE SOCKET ASSEMBLY |
| 67 | 532135 | NUTS - PACKAGE 10 |
| 68 | 53145 | BOLT PACKAGE (10) |
| 69 | 2532944SV | HANDLE ASSEMBLY (UPPER) |
| 70 | 126378 | TUBE - HANDLE (LOWER) |
| xx | 48748 | WASHER |
| xx | 49899 | WASHER - FELT |
| xx | 532282 | SCREWS - PACKAGE 10 |
| xx | 382181 | BRACKET - BUSHING |
